MAG 5000/6000

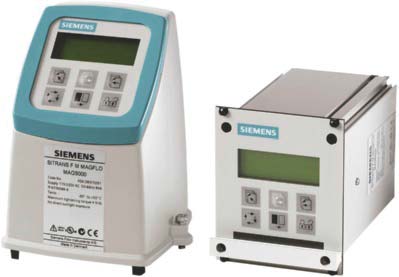

Transmitter MAG 5000/6000 compact version (left) and 19“ insert version (right)
The MAG 5000 and 6000 are transmitters engineered for high
performance, easy installation, commissioning and maintenance.
The transmitters evaluate the signals from the
SITRANS F M sensors type MAG 1100, MAG 1100 F,
MAG 3100, MAG 3100 P and MAG 5100 W.
Transmitter types:
• MAG 5000: Max. measuring error 0.4 % 1 mm/s (incl. sensor)
• MAG 6000: Max. measuring error 0.2 % 1 mm/s (incl. sensor,
see also sensor specifications) and with additional features
such as: "plug & play" add-on bus modules; integrated
batch functions.







• Superior signal resolution for optimum turn down ratio
• Digital signal processing with many possibilities
• Automatic reading of SENSORPROM data for easy commissioning
• User configurable operation menu with password protection.
• 3 lines, 20 characters display in 11 languages.
• Flow rate in various units
• Totalizer for forward, reverse and net flow as well as additional
information available
• Multiple functional outputs for process control, minimum configuration
with analogue, pulse/frequency and relay output
(status, flow direction, limits)
• Comprehensive self-diagnostic for error indication and error
logging (see under SITRANS F M diagnostics)
• Batch control (MAG 6000 only)
• Custody transfer approval: PTB, OIML R 117, OIML R 49, MI-
001, PTB K 7.2 and OE12/C 040 for chilled water
• MAG 6000 with add-on bus modules for HART, FOUNDATION
Fieldbus H1, DeviceNet, Modbus RTU/RS 485, PROFIBUS PA
and DP





• The transmitter is designed as either IP67 NEMA 4X/6 enclosure
for compact or wall mounting or 19" version as a 19” insert as a
base to be used in:
• 19" rack systems
• Panel mounting IP20/NEMA 1 (prepared for IP65/NEMA 2
display side)
• Back of panel mounting IP20/NEMA 1
• Wall mounting IP66/NEMA 4X
Several options on 19” versions are available such as:
• Transmitters mounted in safe area for Ex ATEX approved flow
sensors (incl. barriers)
• Transmitters with electrode cleaning unit on request





The MAG 5000/6000 are transmitters with a build-in alphanumeric
display in several languages. The transmitters evaluate
the signals from the associated electromagnetic sensors and
also fulfil the task of a power supply unit which provides the
magnet coils with a constant current.
Further information on connection, mode of operation and installation can be found in the data sheets for the sensors.
Displays and controls

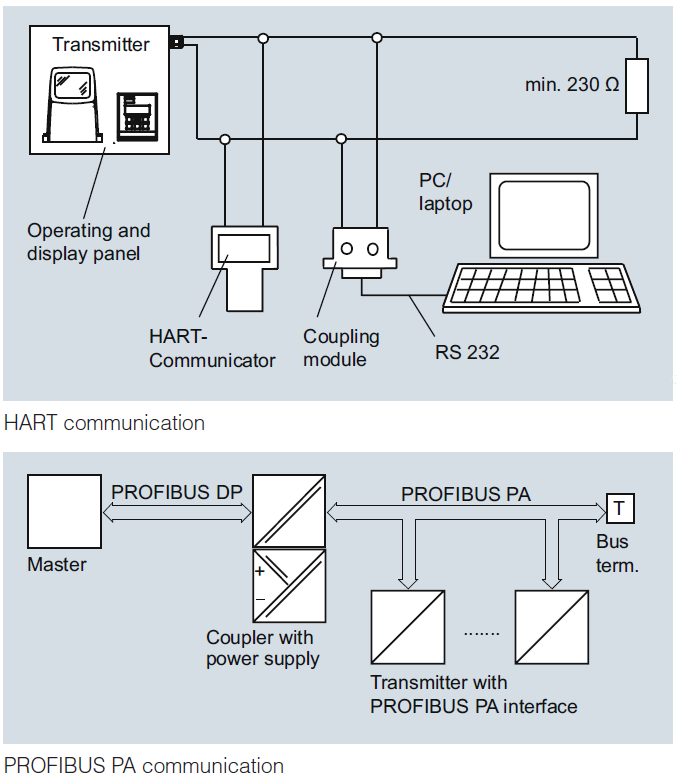

Operation of the transmitter can be carried out using:
• Control and display unit
• HART communicator
• PC/laptop and SIMATIC PDM software via HART communication
• PC/laptop and SIMATIC PDM software using PROFIBUS or
Modbus communication





카달로그 다운로드

The SITRANS F M flowmeters are suitable for measuring the flow
of almost all electrically conductive liquids, pastes and slurries.
The main applications can be found in:
• Water and waste water
• Chemical and pharmaceutical industries
• Food and beverage industries
• Power generation and utility
